ENGINE: 2.0L I4 DOHC DI TURBO PHEV

• (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA MPG Equivalent - Combined: 49.003
• Estimated Battery Range (mi): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (2nd): 730
• Weight Information
• Base Curb Weight (lbs): 5075
• Gross Axle Wt Rating - Front (lbs): 3100
• Gross Axle Wt Rating - Rear (lbs): 3550
• Curb Weight - Front (lbs): 2519
• Curb Weight - Rear (lbs): 2506
• Gross Vehicle Weight Rating Cap (lbs): 6450
• Gross Combined Wt Rating (lbs): 9050
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Maximum Trailering Capacity (lbs): 3500
• Suspension
• Suspension Type - Front: Leading Link
• Suspension Type - Rear: Trailing Arm
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: TPV
• Rear Tire Order Code: TPV
• Front Tire Size: P255/60SR20
• Rear Tire Size: P255/60SR20
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 38.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 17.2
• Exterior Dimensions
• Wheelbase (in): 118.4
• Length, Overall (in): 188.4
• Width, Max w/o mirrors (in): 73.9
• Height, Overall (in): 73.5
• Track Width, Front (in): 64.4
• Track Width, Rear (in): 64.4
• Min Ground Clearance (in): 10.1
• Liftover Height (in): 30

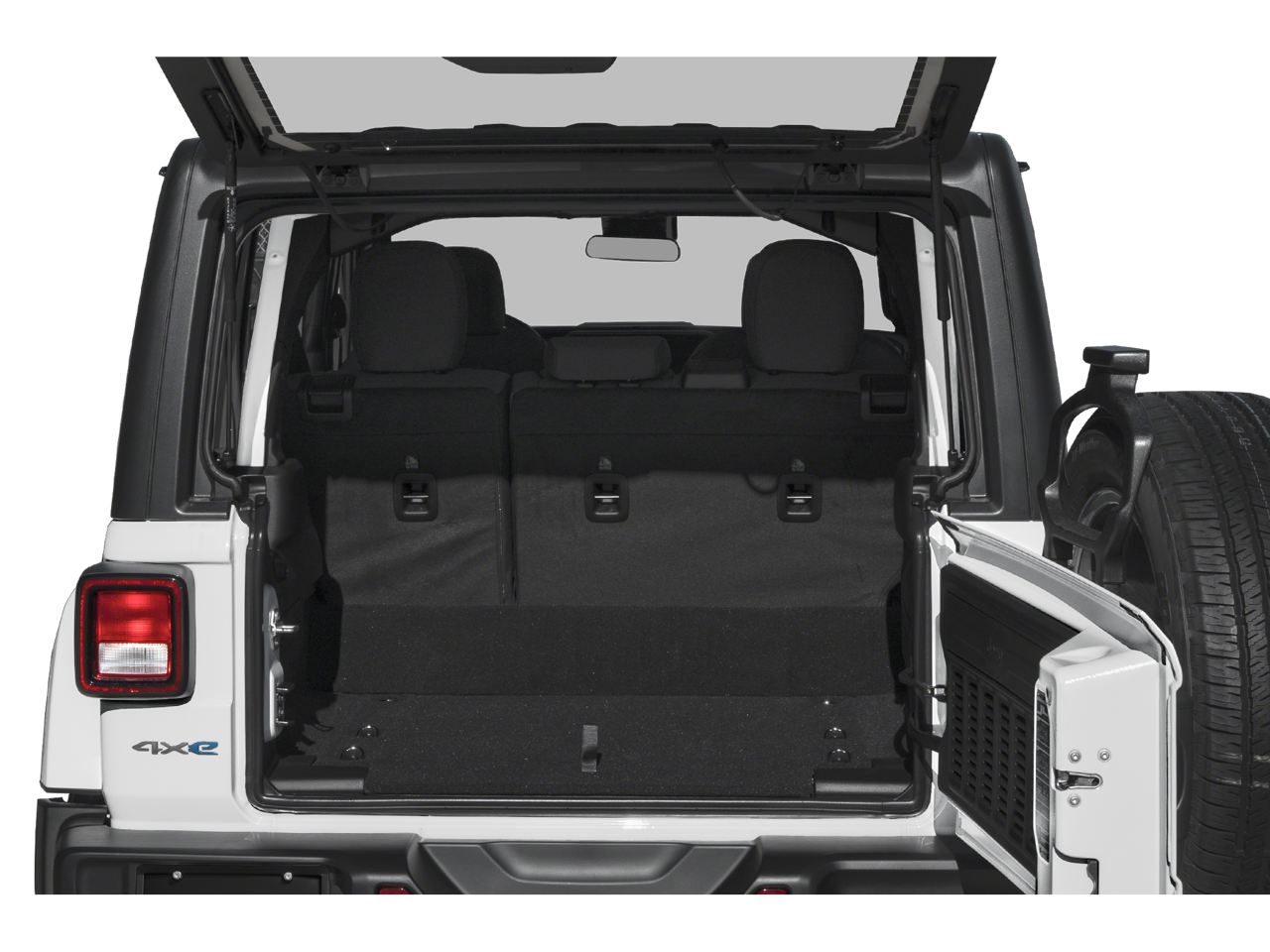

• Cargo Area Dimensions
• Cargo Area Width @ Beltline (in): 47.9
• Cargo Box Width @ Wheelhousings (in): 41.5
• Cargo Box (Area) Height (in): 35.7
• Cargo Volume to Seat 1 (ft³): 67.4
• Cargo Volume to Seat 2 (ft³): 27.7
• Cargo Volume to Seat 3 (ft³): 27.7

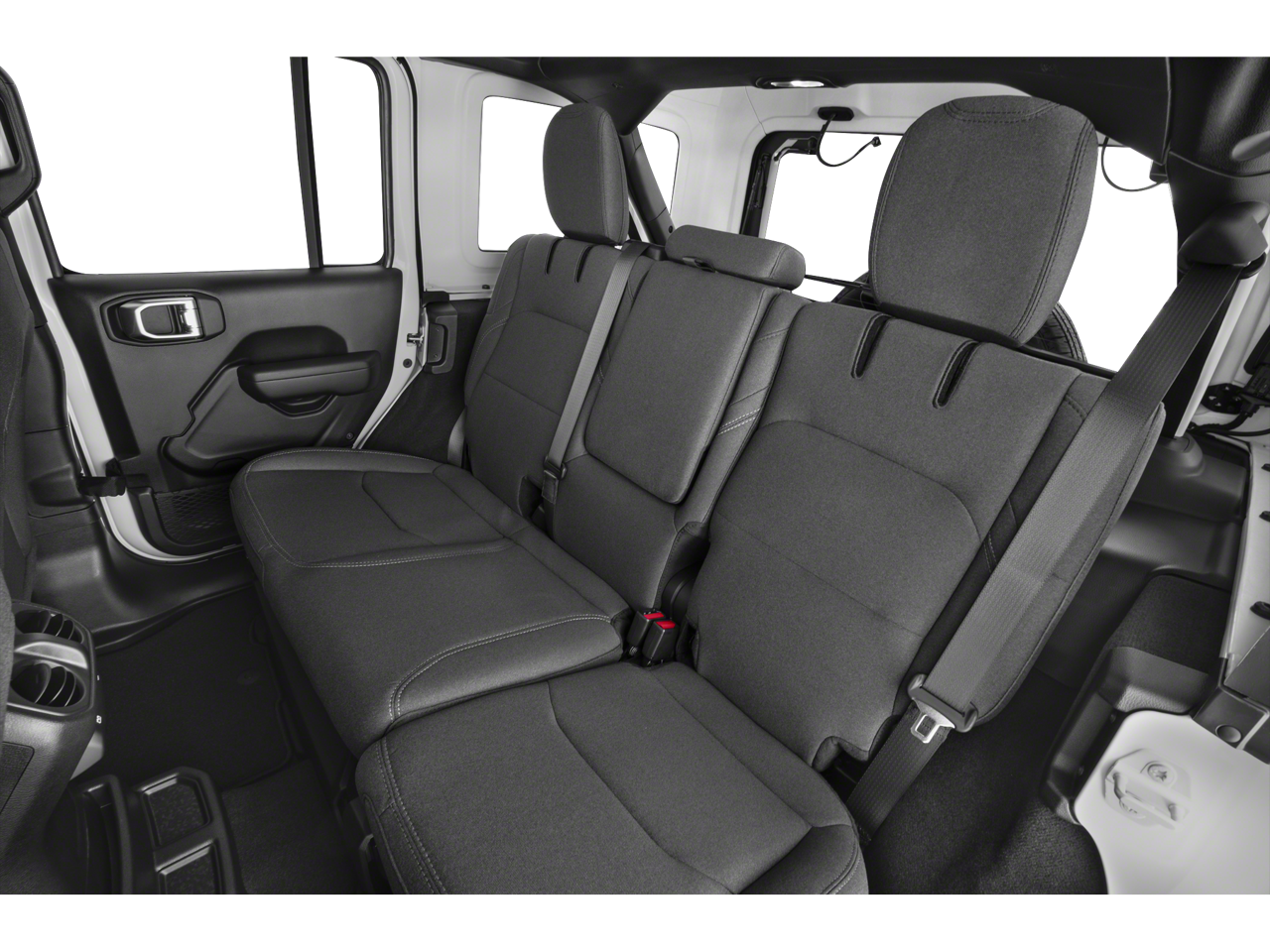

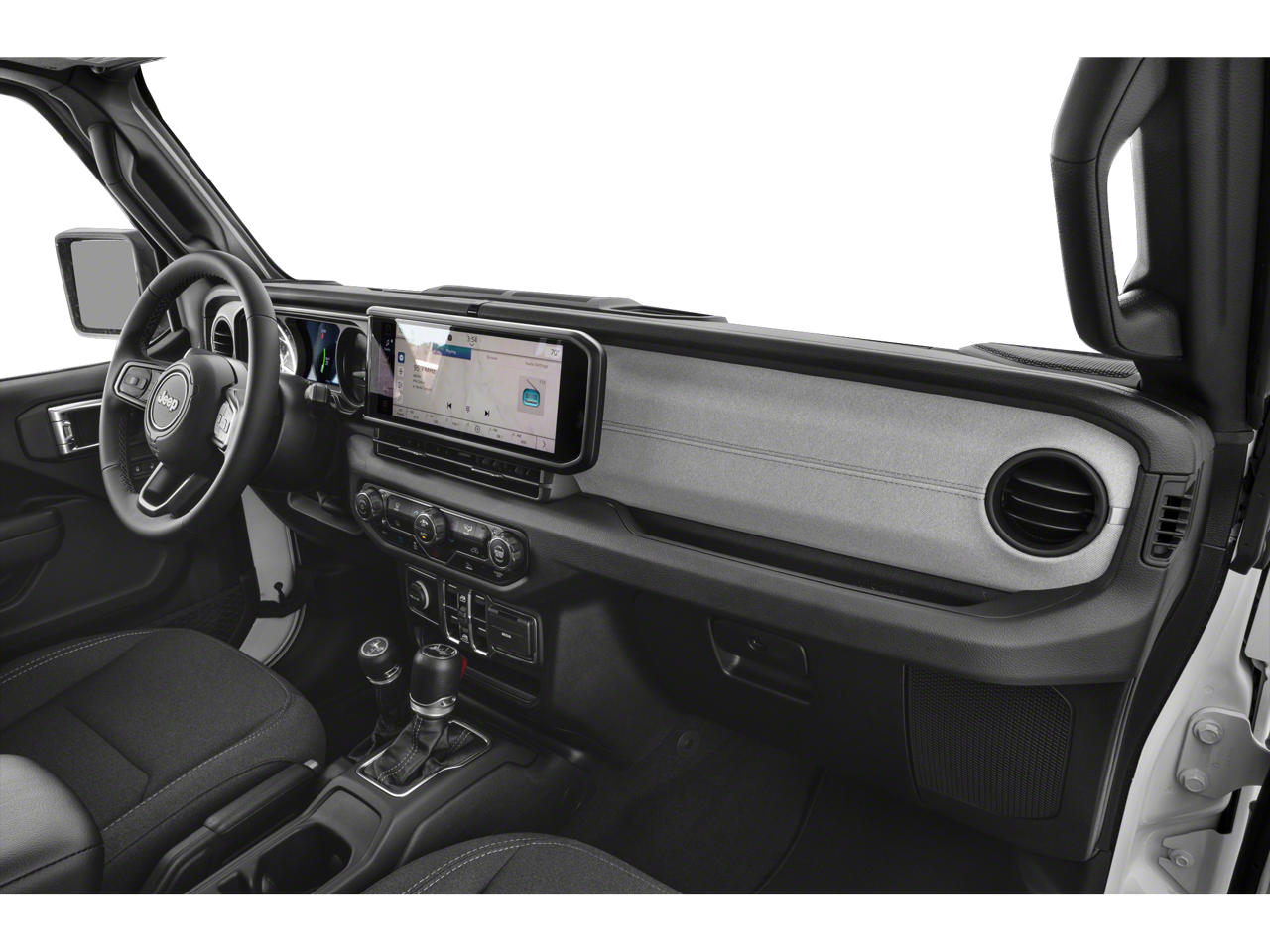

• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.8
• Front Leg Room (in): 40.8
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 53.9
• Second Head Room (in): 42.6
• Second Leg Room (in): 38.2
• Second Shoulder Room (in): 55.8
• Second Hip Room (in): 55.9
• Summary

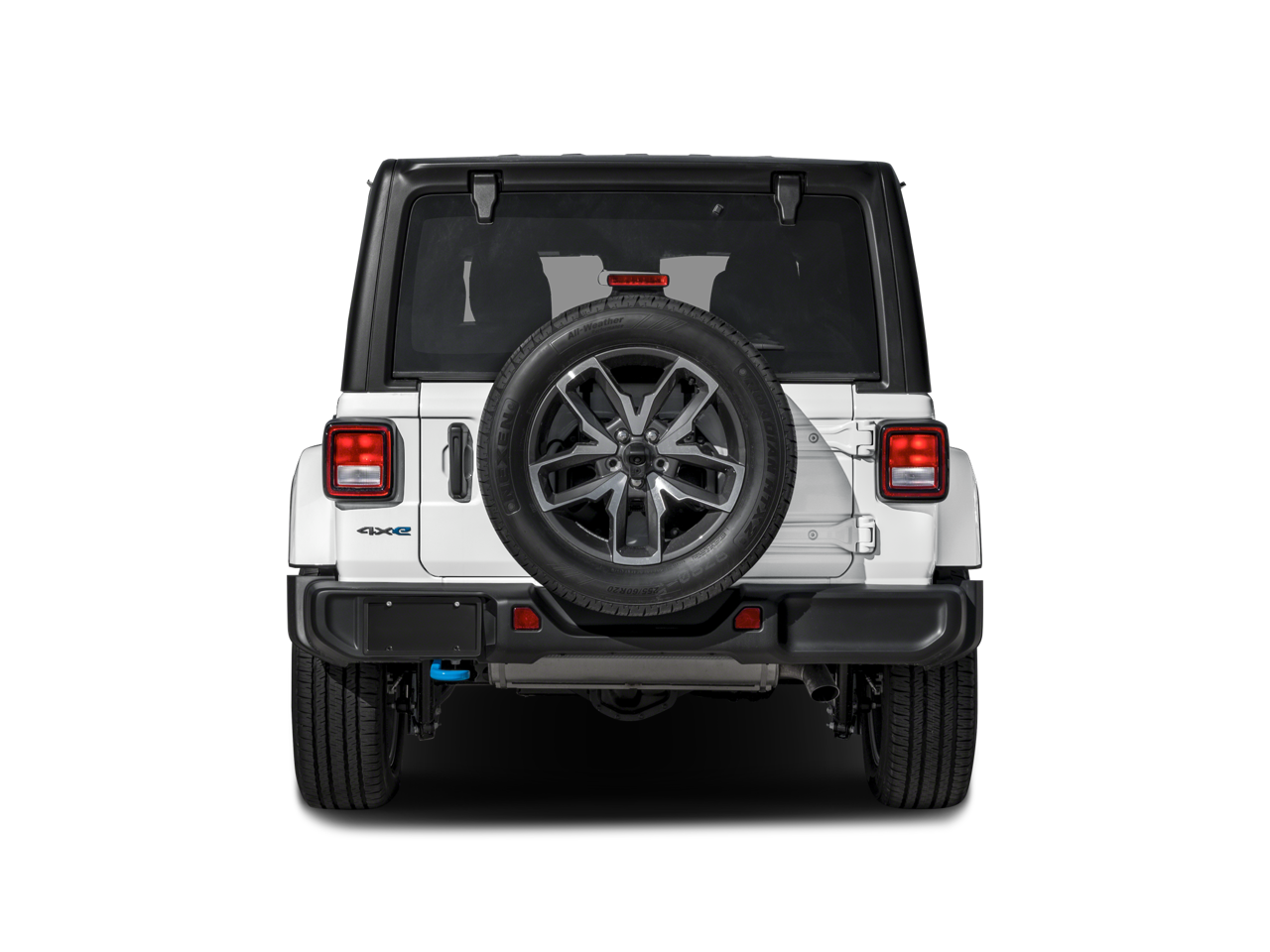

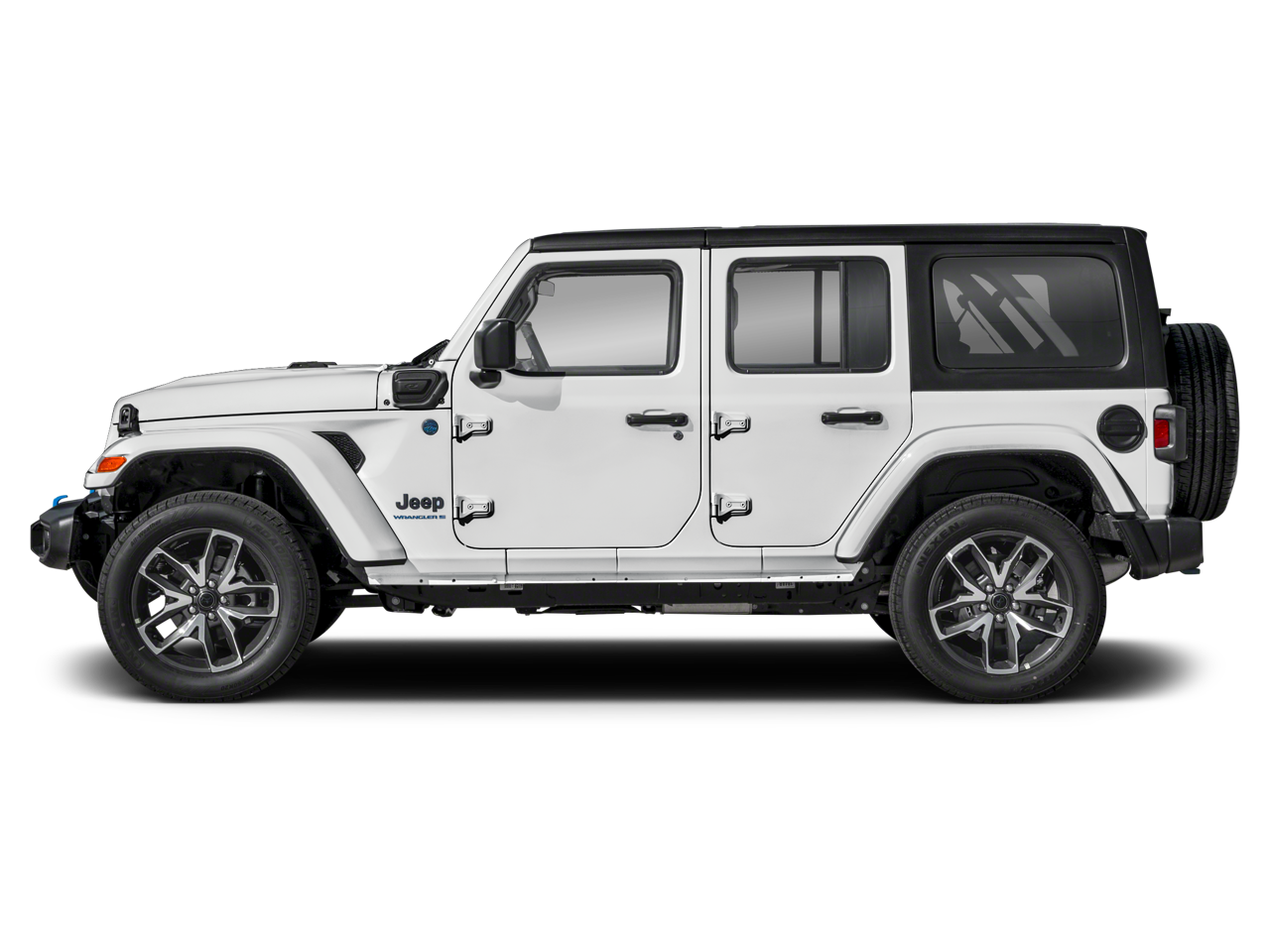

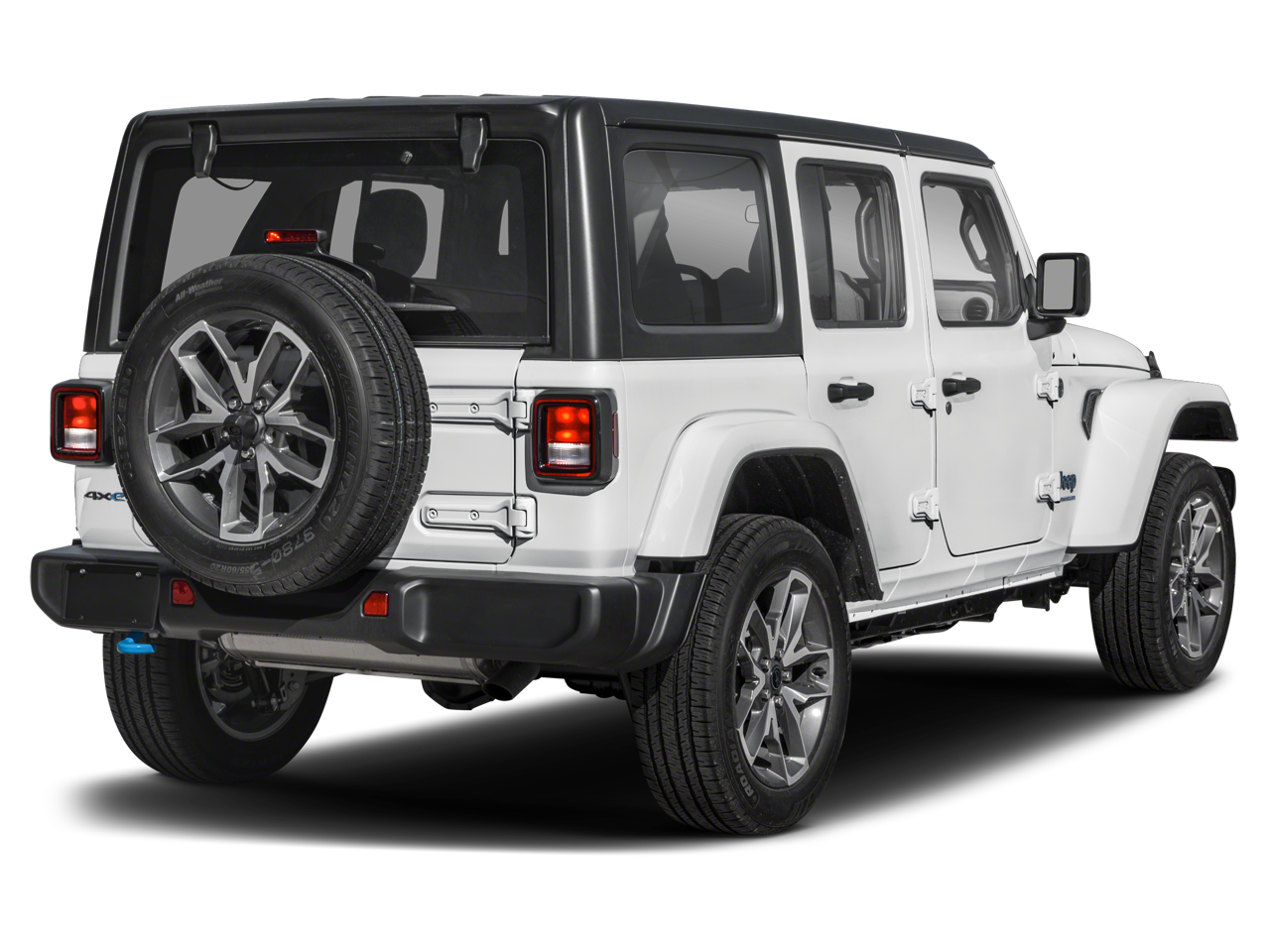

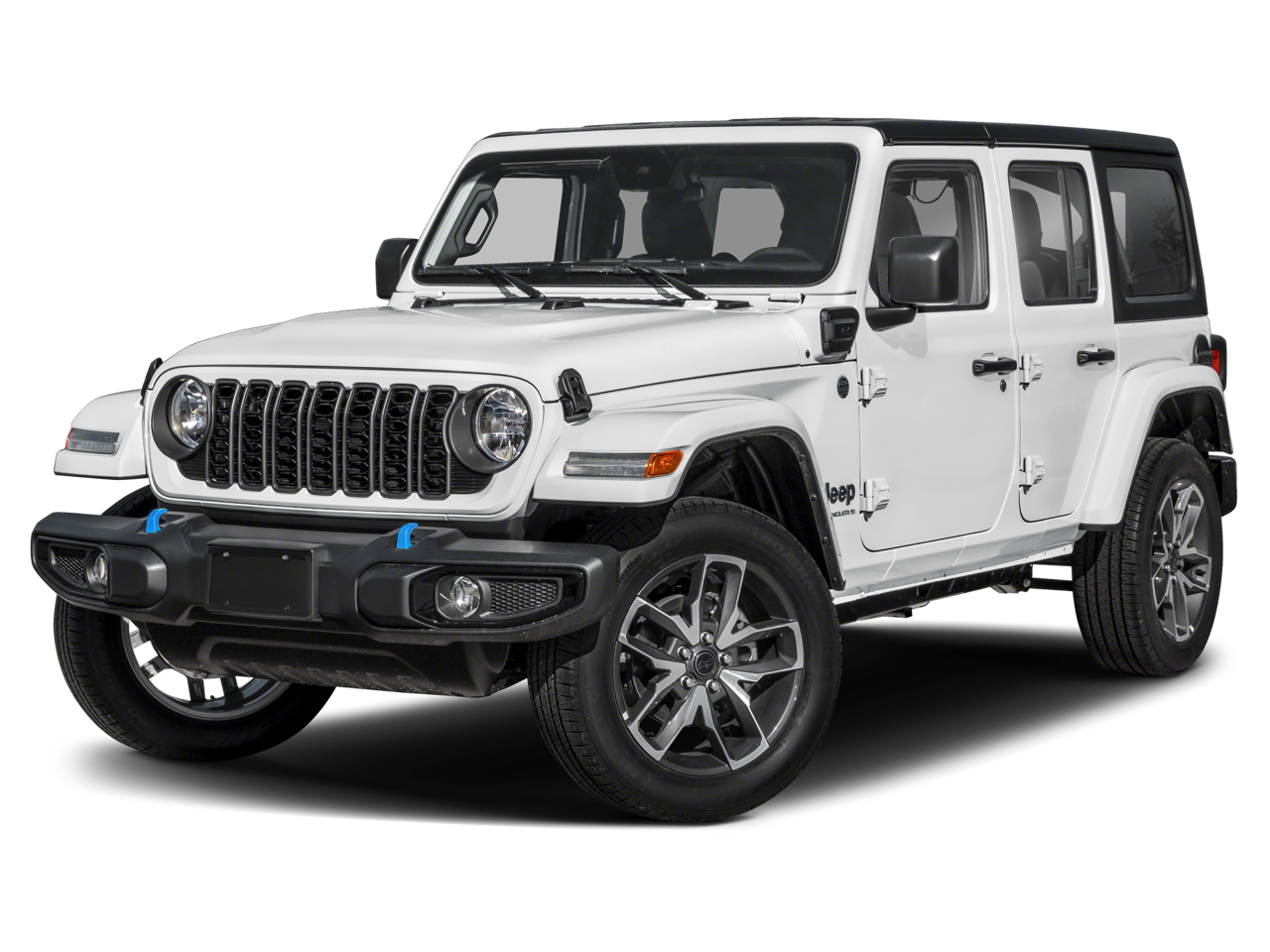

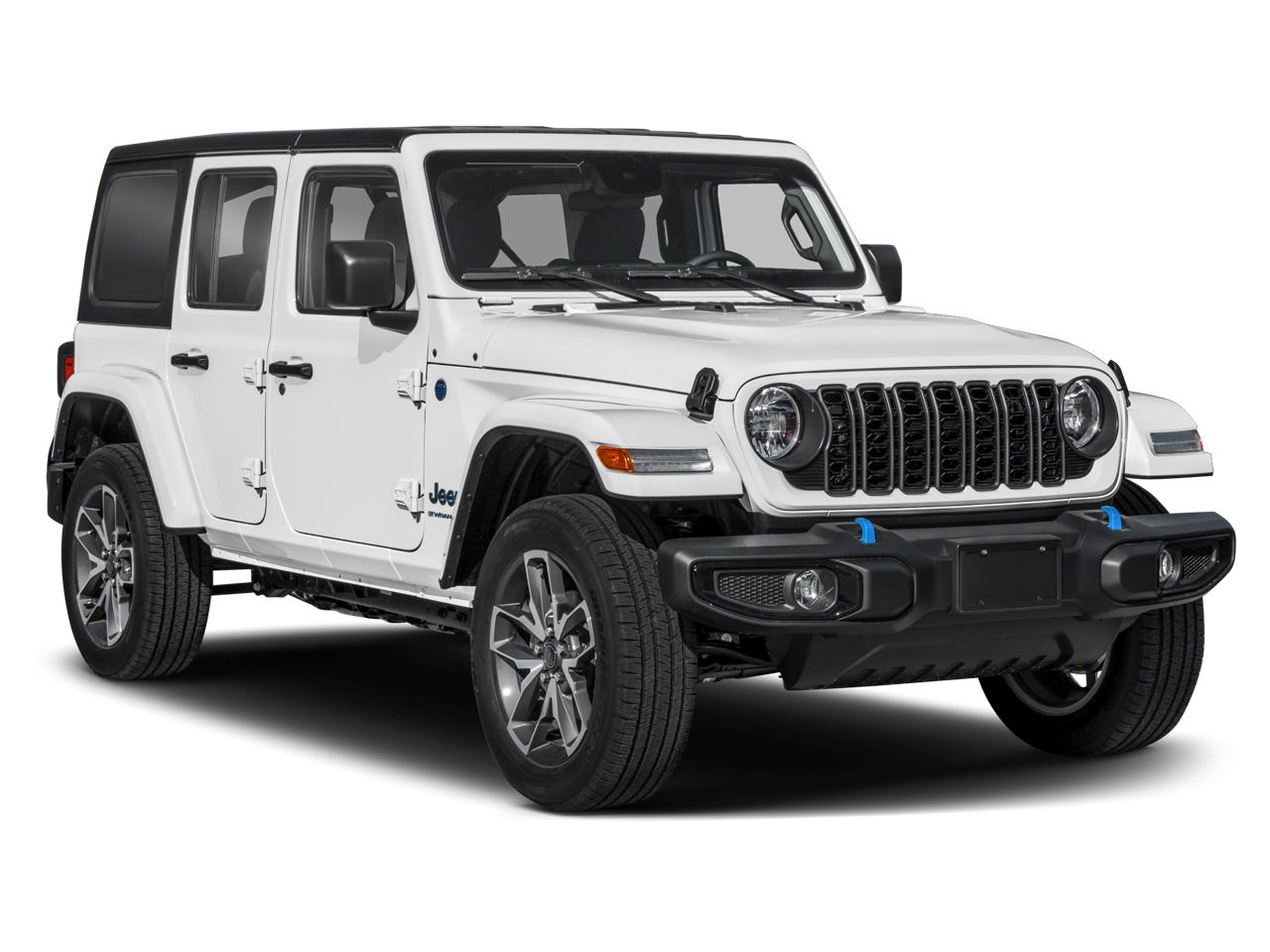

• Vehicle Name: Jeep Wrangler 4xe
• Body Style: Sport Utility
• Body Code: S
• Emissions
• EPA Greenhouse Gas Score: 7.0
